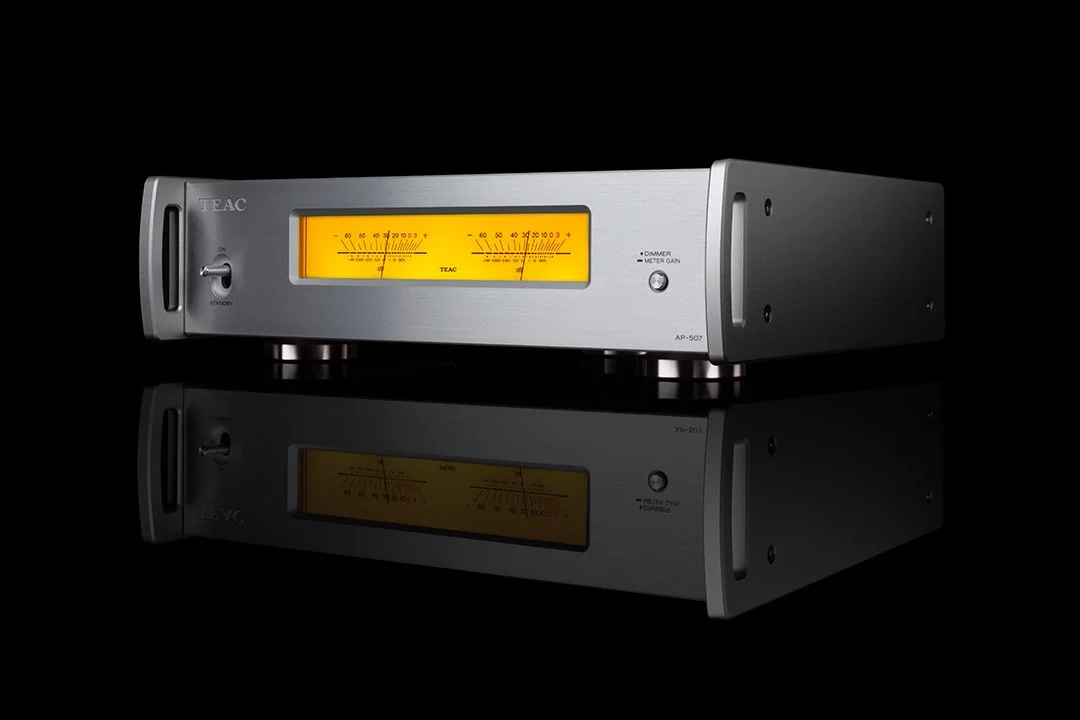

TEAC releases the Reference 500 Series Stereo Power Amplifier AP-507
Straight from Tokyo Japan the new AP-507 is the latest component from their sprawling 500 series. And I’m here for it.
From off reviewing the UD 507, DAC Preamplifier and Headphone Amplifier, A component that is as flexible as it is competant I’ve been itching to get my hands on one of their ampliifers. This looks to be the one to get. This Reference 500 series compact stereo power amplifier features a Hypex NCOREx® TEAC custom module. And it’s available in black and sliver finishes,
In addition to being compact (TEAC makes sure to mention the compact A4 “letter size” footprint), it’s designed for flexibility, the AP-507 can be used bi-amp mode or high-power BTL mode (350W/8 ohms). Its compact size and versatility also make it an excellent choice for enhancing AV surround sound systems. Something I totally plan on doing should I get a hold of one.
TEAC Custom NCOREx® Power
The tuned "NCOREx®" power amplifier module manufactured by Hypex in the Netherlands is advanced “x” generation NCORE technology which is said to deliver an immersive, three-dimensional soundstage and a more expansive spatial presence. And it’s built around a dual-mono buffer amplifier, with close attention paid to component and circuit detail for ‘unparalleled clarity and richness’.
Here’s the rest of the press release:
Encased in a robust chassis, the AP-507 features a 2.8mm thick semi-floating aluminum top plate and an innovative 3-point Stress-Less Isolation Foot system. This precision-engineered design minimizes vibrations, creating a more open and natural listening experience.
Key Features
Hypex "NCOREx": New generation amplifier module custom-modified to TEAC's specification.
Compact / High Power: 170W+170W (4ohm), 350W (8ohm) BTL
Fully Balanced Circuit Design on all stages
Proprietary Dual-Mono Buffer Amplifier: Retuned for superior sound quality
High-Capacity Power Supply: Large toroidal transformer and 18,800 μF capacitors par channel
Three Drive Modes: Stereo, Bi-Amp and BTL
Ideal Amplifier Choice for AV Surround Systems
XLR / RCA Inputs
Large Screw-Type Speaker Binding Posts
Trigger In / Through
Compact, “Letter Size” Footprint: Ideal for desktop use.
Rugged Aluminum and Steel Chassis
Semi-Floating 2.8 mm Thick Aluminum Top Panel
Stress-Less Isolation Foot: Designed for clear focus and natural timbre.
Silent Operation: Fan-less design for minimal noise.
Dual Pointer VU Meters; 4-step dimmer / 2-step sensitivity switch.
Auto Power-Saving Function
Available in Silver and Black
The AP-507 will be available to purchase spring 2025 from TEACUSA.com and select dealers. The MSRP is $2199 (USA) / €1899 (EU) / £1899 (UK).
Specifications
Maximum effective output（1kHz): [STEREO, BI-AMP] 170W + 170W（4 Ω), 95W + 95W（8 Ω) [BTL] 350W（8 Ω)
Rated Output (1% THD, 1kHz): [STEREO, BI-AMP] 125W + 125W（4 Ω) , 70W + 70W（8 Ω) [BTL] 230W（8 Ω)
Allowable speaker impedance: [STEREO, BI-AMP] 4 Ω to 16 Ω [BTL] 8 Ω to 16 Ω
Total harmonic distortion: 0.0015%（8 Ω、1kHz, 12.5W）
S/N ratio: 113 dB （8 Ω, 1kHz）
Frequency response（8Ω、1kHz、1W）: 10 to 50kHz(+0dB, −5dB)
Input sensitivity ( 8 Ω, 1% THD output): RCA 0.66V, XLR 1.3V
Input impedance (RCA/XLR): 10k Ω or more
Power supply: AC 220–230 V, 50/60 Hz (Europe) AC 120 V, 60 Hz (USA/Canada)
Power consumption: 58W
External dimensions (W × H × D, including protrusions): 290mm x 84.5mm x 271mm, 11 1/2" × 3 3/8" × 10 3/4"
Weight: 4.4kg (9 3/4 lb)
Included accessories: Power cord × 1, Rubber pads × 3, Owner’s manual
